netatalk: start cnid_metad only when a volume uses the dbd scheme

[andylemin]

Fixes #3268.

Problem

The netatalk master started cnid_metad whenever the dbd backend was merely compiled in (CNID_BACKEND_DBD), regardless of whether any volume has cnid scheme = dbd. All three backends compile by default and the default scheme is sqlite (in-process), so a stock install ran an idle cnid_metad/cnid_dbd pair that nothing talks to.

Design

The master already has the machinery: it loads volumes before starting services and re-loads them on SIGHUP, and its timer re-launches any service whose pid sentinel is NETATALK_SRV_NEEDED. The change makes the needed/optional decision from the configuration in one small exported check plus three call sites:

• conf_cnid_scheme_in_use() (netatalk_conf.c): scans the loaded volume list, then the [Homes] section — homes volumes are instantiated per-user at login, so outside AFP sessions they never appear in the master's volume list; the section's scheme is resolved exactly as creatvol() resolves it (section → preset → global → compiled default). It lives in netatalk_conf.c because those resolution helpers are static there.
• Startup: skip cnid_metad when no volume resolves to dbd.
• Timer restart guard: the reaper marks a dead cnid_metad as NETATALK_SRV_ERROR, which equals NETATALK_SRV_NEEDED — without a guard the timer would resurrect a daemon a reload just made unnecessary; the guard demotes instead. This one check makes stop transitions converge through the existing machinery with no new state.
• SIGHUP: after the volume reload, stop a running daemon no dbd volume needs (SIGTERM → reap → guarded demotion) or mark it needed when one now does (next timer tick starts it). Both transitions are logged.

Robustness: if the master's volume load fails, an empty list is indistinguishable from "no volumes", so a volumes_loaded flag makes every decision fail conservative — the daemon runs, exactly as today. Builds without the dbd backend are unchanged: the pid sentinel can never become needed there (the SIGHUP re-evaluation is compile-gated), so the master never attempts to start a binary that isn't installed.

Reload semantics

Start/stop on SIGHUP applies to added or removed volumes. Changing cnid scheme on an existing volume takes effect at restart only — creatvol() does not change options for volumes once loaded, which is netatalk's long-standing reload behaviour for all volume options; this PR matches it rather than changing it.

Testing

All cases run against live containers built from this branch.

build	configuration	expected	result
all backends (default)	cnid scheme = sqlite volumes	no cnid_metad	✓ 0 processes
all backends	cnid scheme = dbd volumes	daemon running	✓
all backends	only share is [Homes], global cnid scheme = dbd	daemon running	✓ — the homes resolution path
all backends	SIGHUP: add a new dbd volume	started	✓ "Starting 'cnid_metad': a volume now uses the dbd CNID scheme", process appears
all backends	SIGHUP: remove that volume	stopped, not restarted	✓ "Stopping 'cnid_metad': …", cnid_metad logs "shutting down on SIGTERM", process gone, no restart — the timer guard held
all backends	kill -9 a needed cnid_metad	restarted by the master	✓ existing behaviour preserved
all backends	AFP spectest ea=sys and ea=ad legs	green	✓ exit 0, zero failures
all backends	meson test	green	✓ zero failures
no dbd (-Dwith-cnid-backends=sqlite,mysql)	build + unit suite	green; cnid_metad not installed	✓
no dbd	sqlite volume, live master	master + afpd run, no metad	✓
no dbd	volume explicitly cnid scheme = dbd	inert: no metad, no start-error loop	✓ — the volume fails at client open as on any backend-less build; cnid_open() has no backend fallback (verified)
dbd only (-Dwith-cnid-backends=dbd)	stock config, no scheme set anywhere	daemon running	✓ — the compiled default is dbd here, exercising the check's default-resolution end to end
dbd only	volume explicitly sqlite (unavailable backend)	no metad	✓ — masks nothing; the volume fails at open, pre-existing

(The dbd-only build cannot run the unit suite: with-tests uses the sqlite backend because the cnid_metad / cnid_dbd daemon combo needs root privileges to run, so dbd was deliberately left out of the afpd tests.)

[andylemin]

@rdmark ready for review

[rdmark]

this is a nice improvement! one more step towards completely decoupling from the old dbd structure

[rdmark]

(The dbd-only build cannot run the unit suite: meson's with-tests requires the sqlite backend — a build-system constraint, not a gap.)

not strictly speaking a build system constraint, rather that root privileges are required to run the cnid_metad / cnid_dbd daemon combo so I decided not to use it for the afpd tests

we could easily add support for the mysql backend in the afpd tests if it's valuable

[sonarqubecloud]

Quality Gate passed

Issues
0 New issues
0 Accepted issues

Measures
0 Security Hotspots
0.0% Coverage on New Code
0.0% Duplication on New Code

See analysis details on SonarQube Cloud

[andylemin]

@rdmark feedback resolved

[github-actions]

📊 Performance Dashboard

Commit: 73d230cf893f568fd3cf151e3d8d922deaf0b4cc

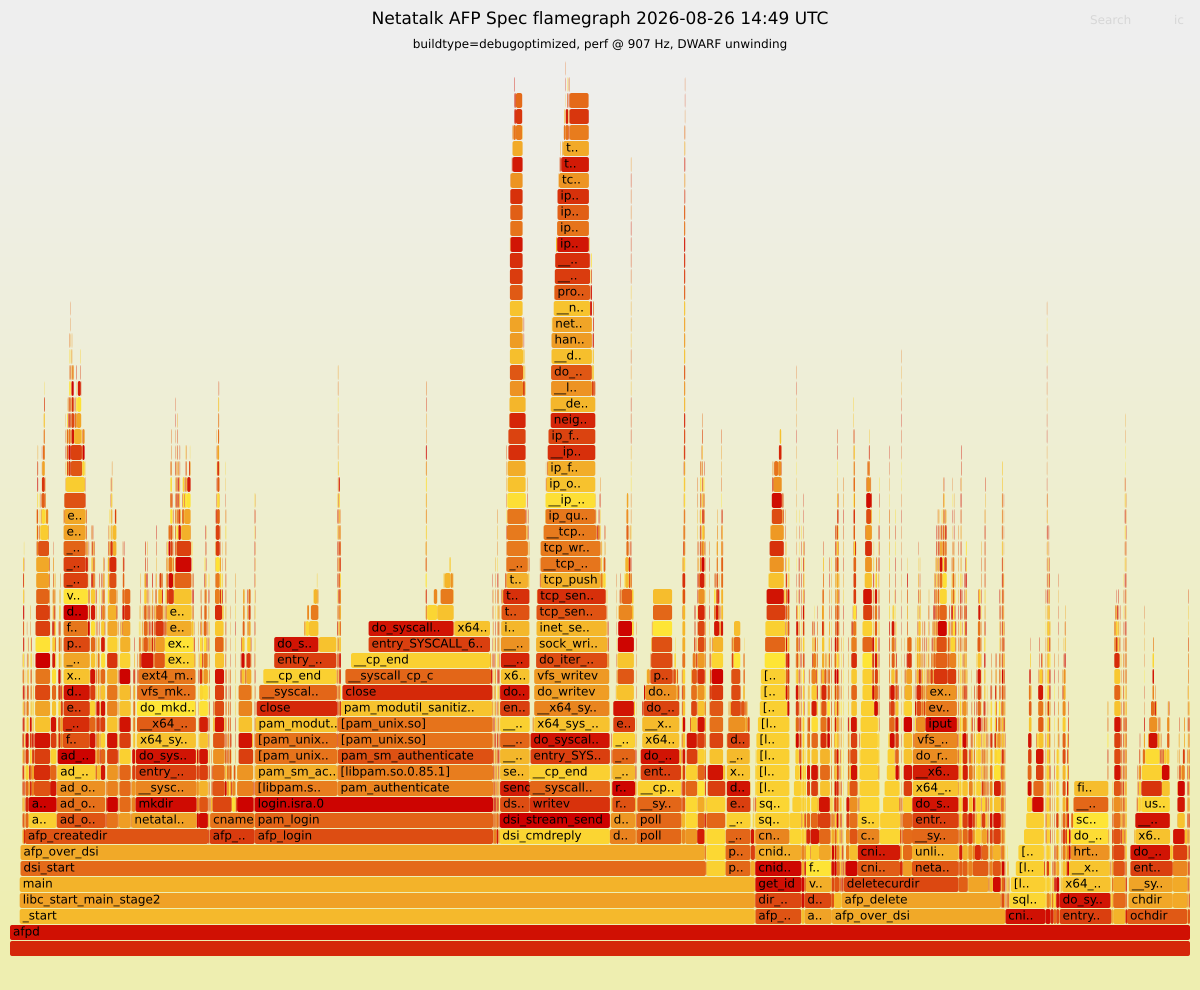

🔥 Spectest (AFP 3.4) - FlameGraph

Netatalk Code-time: 2.4% · Runtime: 61s · Stacks: 1638

🔥 Click the preview to open the interactive flamegraph (zoom + search).

🔝 Top 10 leaf functions

Function	Samples
do_syscall_64	392502460
x64_sys_call	251377980
finish_task_switch.isra.0	174200530
[libsqlite3.so.3.53.4]	163175180
_raw_spin_unlock_irqrestore	145534620
__cp_end	115766175
srso_alias_safe_ret	50716610
syscall_trace_enter	38588725
__syscall_cp_c	38588725
afpd	28665910

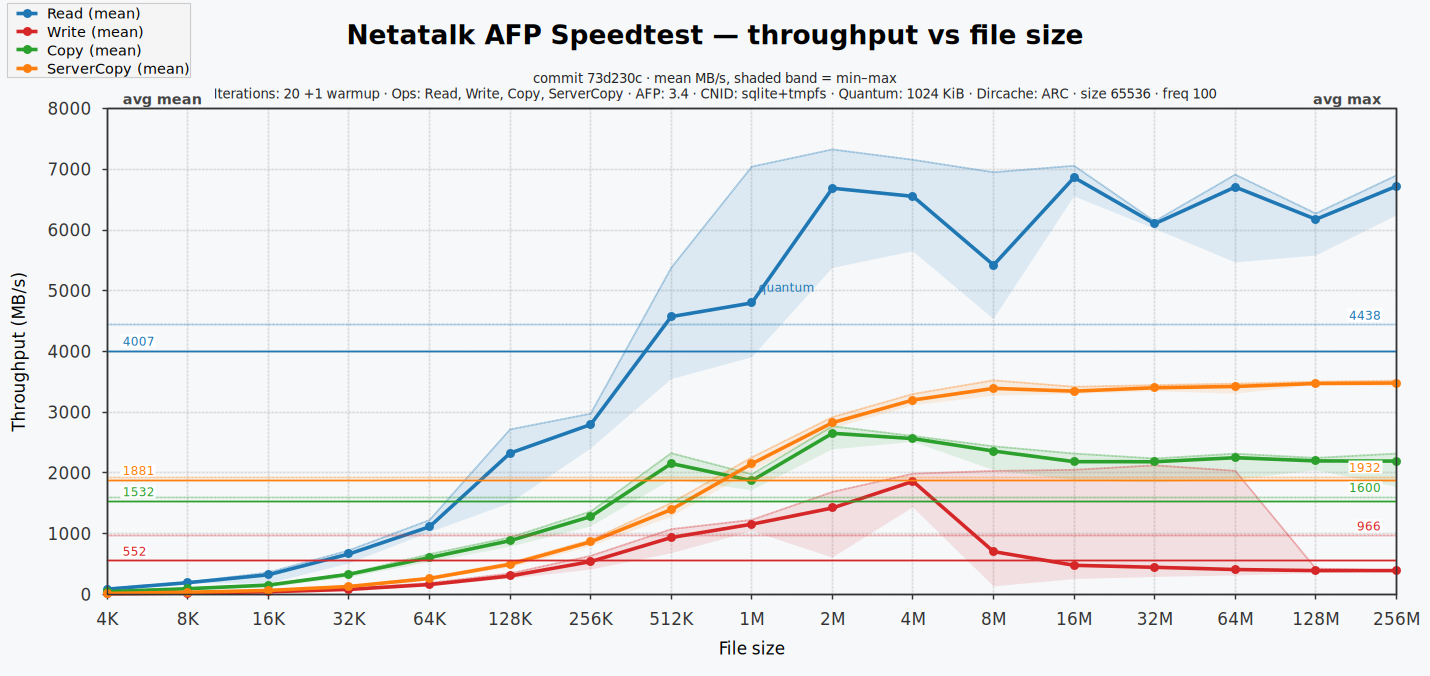

📈 Speedtest (AFP 3.4) - PerfGraph

Peak Read: 6864 MB/s (-4.2% vs hist avg 7165.5 MB/s; min 5963 / max 9526 over 27 PRs)
Peak Write: 1863 MB/s (+46.0% vs hist avg 1275.9 MB/s; min 225 / max 1981 over 27 PRs)

🔝 Throughputs per operation (vs. historical average)

Metric	Current (MB/s)	Cur Avg Δ%	Hist avg	Hist min	Hist max
Read peak mean	6864	-4.2%	7165.5	5963	9526
Read avg mean	4007	-3.5%	4151	3524	5393
Read avg max	4438	-3.0%	4575.4	3812	5932
Write peak mean	1863	+46.0%	1275.9	225	1981
Write avg mean	552	+31.4%	420.0	91	598
Write avg max	966	+29.3%	747.3	224	1032
Copy peak mean	2654	-0.1%	2655.8	2294	3353
Copy avg mean	1532	-2.2%	1566.2	1360	1954
Copy avg max	1600	-6.6%	1712.3	1515	2087
ServerCopy peak mean	3481	-5.3%	3677.3	3055	5090
ServerCopy avg mean	1881	-2.1%	1922	1604	2501
ServerCopy avg max	1932	-3.2%	1995.6	1675	2658

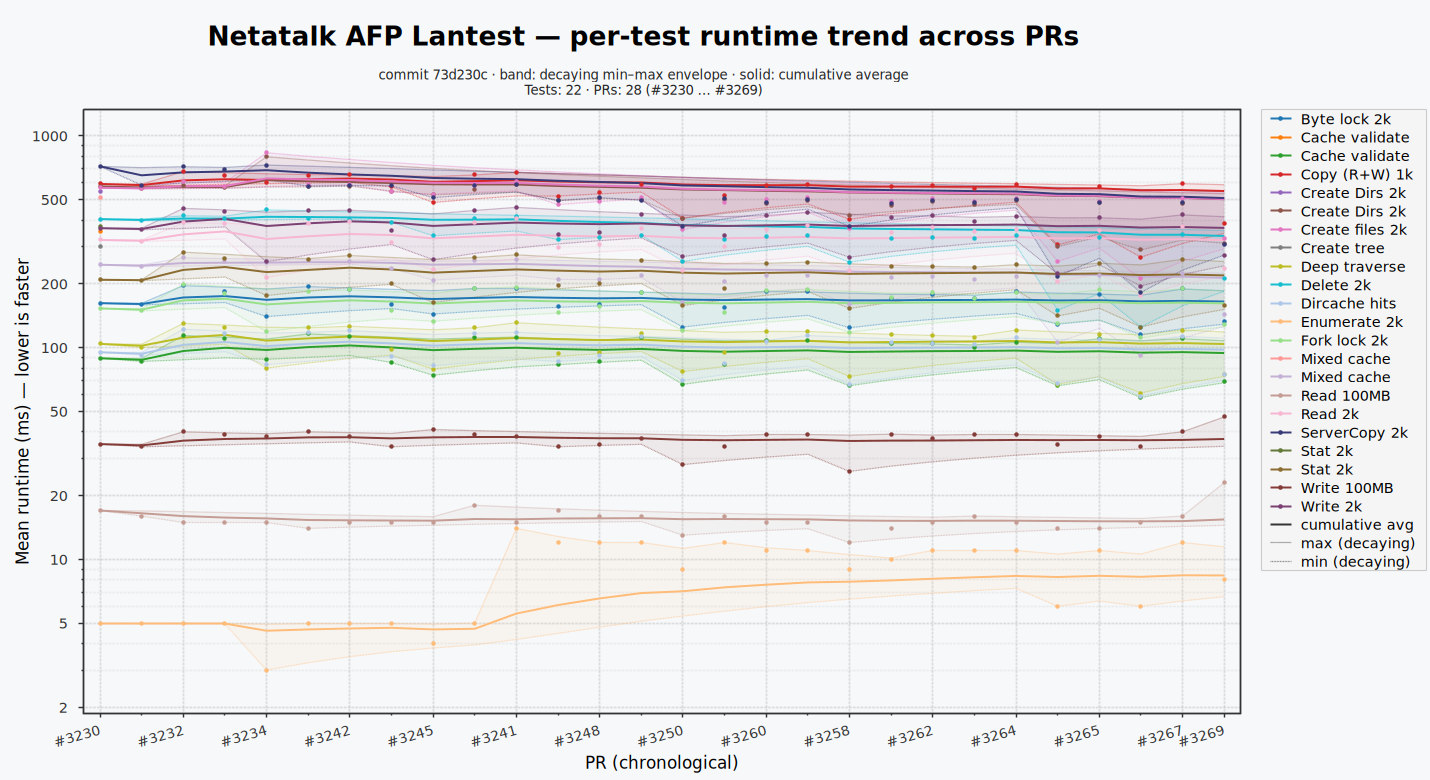

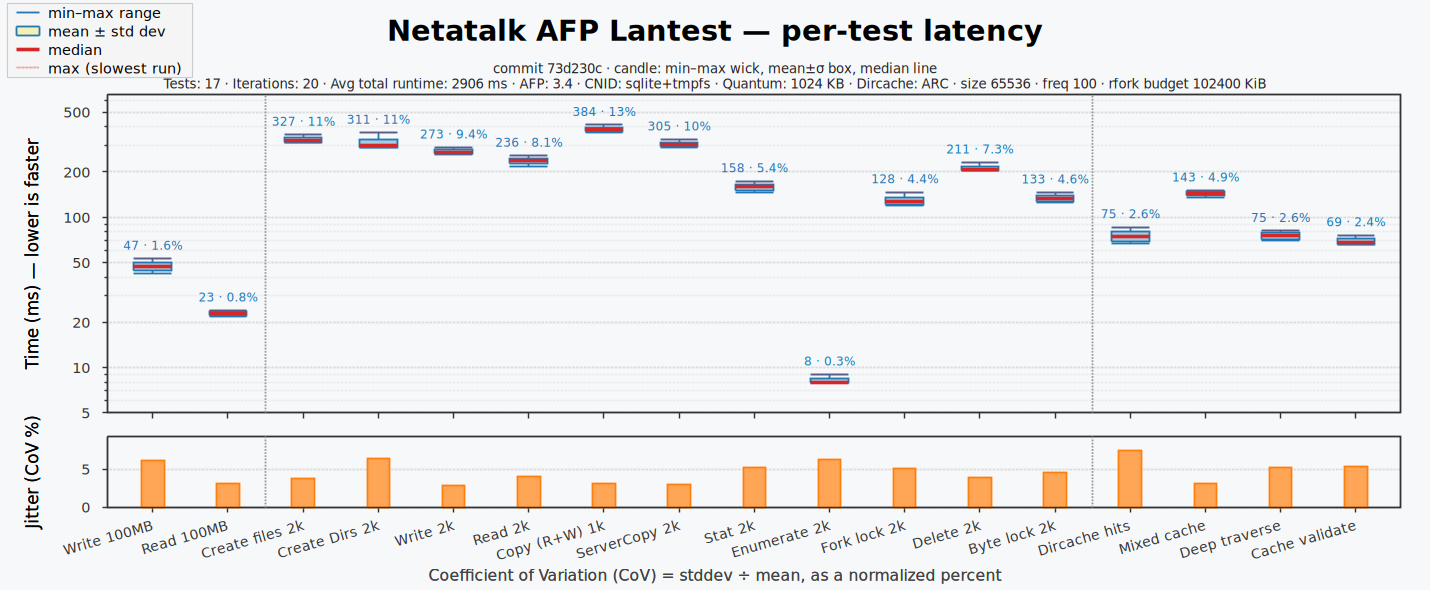

⏱️ Lantest (AFP 3.4) - LatencyGraph

Avg total runtime: 2906 ms (-31.6% vs hist avg 4249.2 ms; min 2122 / max 5208 over 27 PRs)
Avg time per AFP op: 59 µs (-30.8% vs hist avg 85.3 µs; min 43 / max 105 over 27 PRs)

🐢 All operations (avg runtime, in test order, vs. historical average)

Metric	Current (ms)	Cur Avg Δ%	Adj Δ%	Hist avg	Hist min	Hist max
Writing one large file	47	+28.3%	—	36.6	26	41
Reading one large file	23	+51.8%	—	15.1	12	18
Creating 2000 files	327	-35.7%	-7.2%	508.8	211	831
Create 2000 dirs tree (20×9×10)	311	-38.9%	-10.3%	508.8	289	796
Open, write 1024 bytes, close 2000 files	273	-26.4%	+2.2%	370.7	195	459
Open, read 1024 bytes, close 2000 files	236	-27.3%	+1.2%	324.7	177	408
Copying 1000 files client-side (R+W)	384	-30.8%	-2.2%	554.6	267	677
Copying 2000 files server-side	305	-40.8%	-12.3%	515.4	182	727
Stat (lookup+getparams) 2000 files	158	-28.7%	-0.1%	221.4	125	282
Enumerate dir with 2000 files	8	-4.8%	+23.7%	8.41	3	14
Lock then unlock 2000 open forks	128	-21.4%	+7.1%	162.9	111	199
Deleting 2000 files	211	-38.1%	-9.6%	340.9	125	447
Byte-range lock/unlock 2000 ranges in one fork	133	-19.9%	+8.6%	166.1	115	196
Directory cache hits (20 dirs x 100 files)	75	-23.9%	+4.6%	98.6	59	122
Mixed cache operations (create/stat/enum/delete) on 500 files	143	-33.8%	-5.3%	216	92	265
Deep path traversal (20 levels x 100 walks)	75	-28.5%	+0.0%	105.0	61	131
Cache validation (500 files x 4 lookups)	69	-27.5%	+1.1%	95.1	58	116

Run baseline: median op-test delta -28.5%, MAD 5.3%. Adj Δ% shifts each delta by the median; standouts ≥5% in bold. A large MAD means the run did not move uniformly — read the adjusted column with caution.
