This Dash web app aims to perform peak deconvolution without peak assignment or manual baseline correction. This app is developed by mainly referencing HPLC chromatograph. However, by modifying the default peak detection width, this app should be compatible with general peak analysis. It is also capable of processing multiple HPLC data and generating peak area over sample profile in csv.
pip install hein-hplc

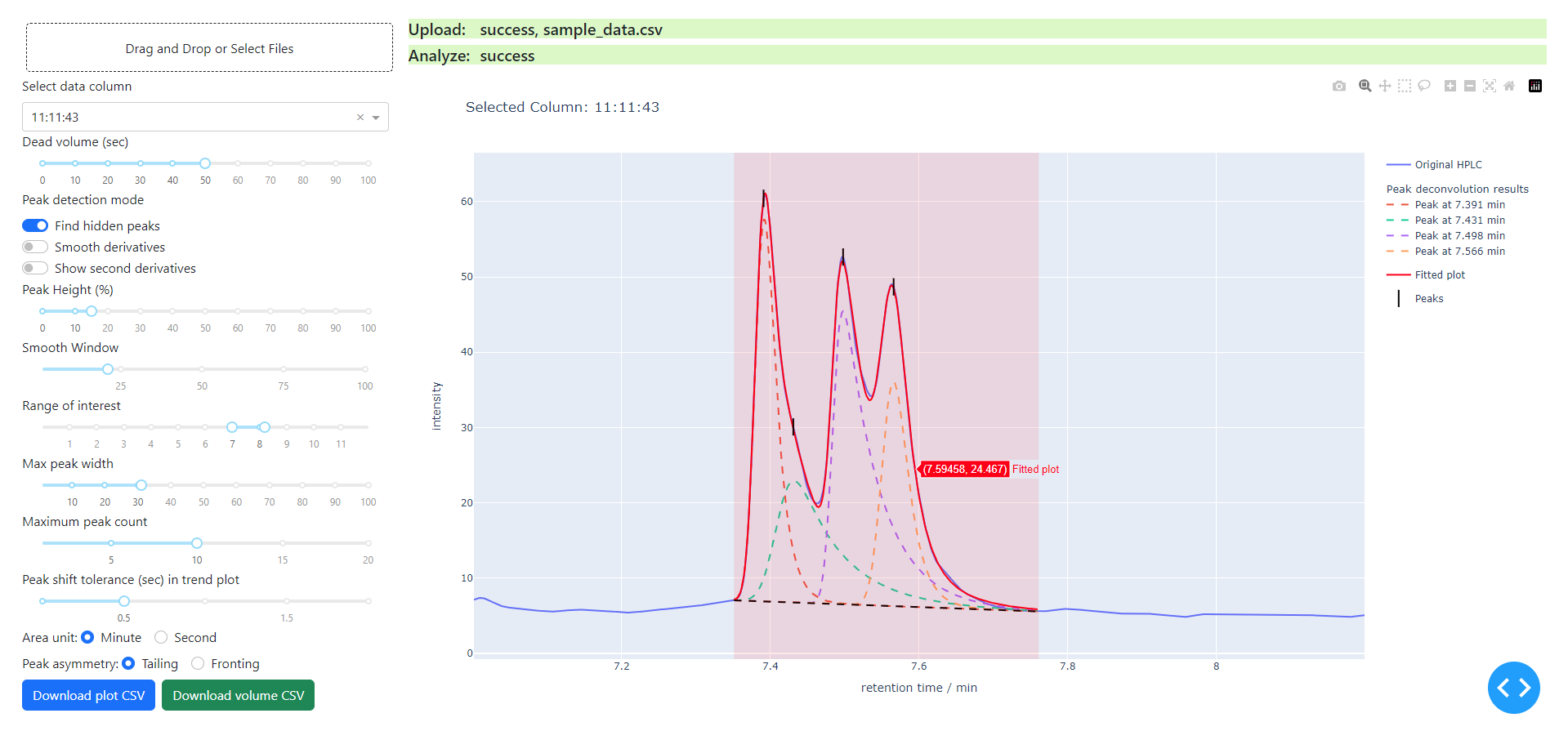

Run the app.py or use the command below. Click the url displayed in Terminal (default: http://localhost:8050), upload .csv or .UV file to get started. Ctrl+C to stop the app.
hein-hplc
Support chemstation .UV file
For data in .csv, column names are not required. For time course plot (example in sample_data.csv), the column name should be TIME (HH:MM:SS). You can append as many as columns with the same retention time scales.
| Retention Time minutes | 10:39:56 | 10:55:59 | 11:11:43 | ... |
|---|---|---|---|---|
| 0.00125 | 0.42767 | 0.09733 | 0.02217 | ... |
| 0.00292 | 0.41933 | 0.086 | 0.01417 | ... |
| 0.00458 | ... | ... | ... | ... |
Ivory Zhang | Hein Lab (ivoryzhang@chem.ubc.ca)
This project is licensed under the MIT License - see the LICENSE file for details.
v0.1.0 was published in
Liu, J.; Sato, Y.; Kulkarni, V. K.; Sullivan, A. I.; Zhang, W.; Crudden, C. M.; Hein, J. E. Insights into the synthesis of NHC-stabilized Au nanoclusters through real-time reaction monitoring. Chem. Sci., 2023, 38(14), p. 10500-10507.
