Compare retrieval architectures on your own documentation and choose with evidence.
KB Arena runs lexical, dense, graph, hybrid, hierarchical, and reranked retrieval on the same corpus and question set. It records retrieval quality, answer quality, latency, cost, and run artifacts so you can decide which design fits your data.
Use it before you commit to a retrieval architecture, or as a regression lab after your corpus, chunking, model, or index changes.
The packaged demo uses precomputed AWS Compute results. It needs no API key, Docker service, or Neo4j instance.
pip install kb-arena

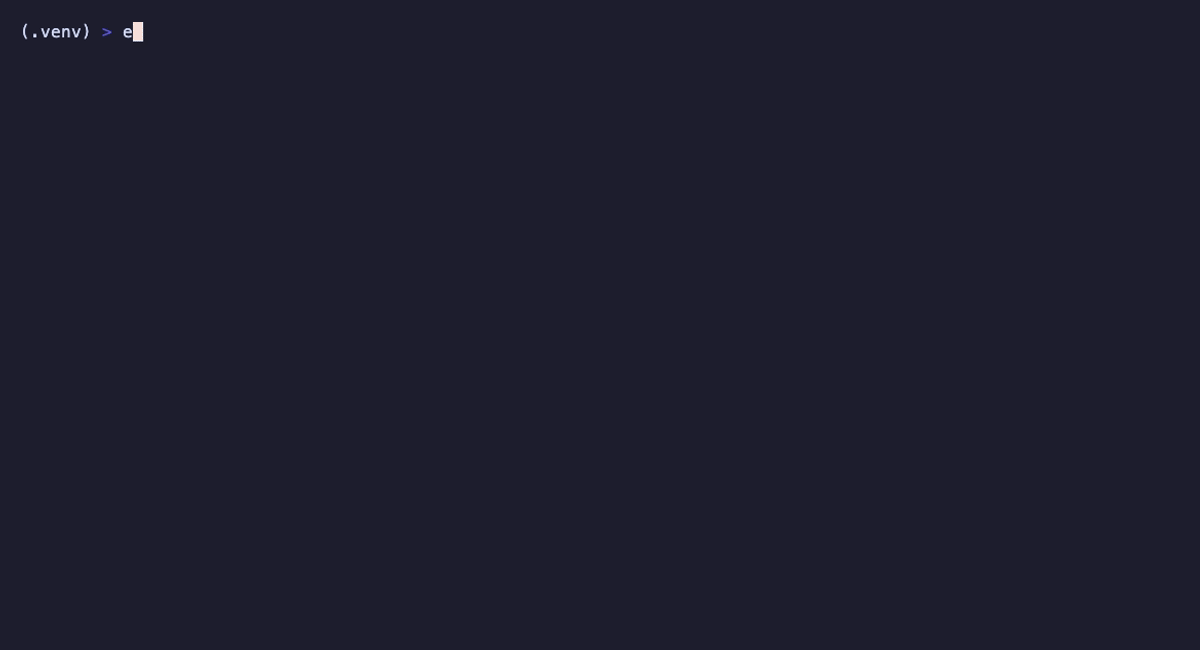

kb-arena demoOpen the URL printed by the command. The dashboard exposes the benchmark table, per-tier results, source drill-down, run comparisons, and the Retriever Lab.
| Question | Comparison |
|---|---|
| Do exact terms matter more than semantic similarity? | BM25 against dense retrieval |
| Does document context improve chunk retrieval? | Naive against contextual vector |
| Do cross-document relationships justify a graph? | Dense against graph and hybrid |
| Does hierarchy help on broad questions? | Dense against RAPTOR and PageIndex |
| Is a reranker worth its latency and cost? | Dense against reranked dense |
| Is a proposed method meaningfully different? | Paired scores, confidence intervals, and rank overlap |
KB Arena does not give a universal leaderboard. A result applies to the corpus, questions, ground truth, configuration, and models named in that run.
The tracked Retriever Lab run 855aac4e is a historical, reproducible example:
- Corpus:
aws-compute, three documents and 1,549 words - Run date: 2026-04-26
- Questions: 75 across five tiers
- Cutoff: top 5 chunks
- Chunk-level labels: 35 questions have labels, and 40 do not
- Scope: eight strategies from the version available on the run date

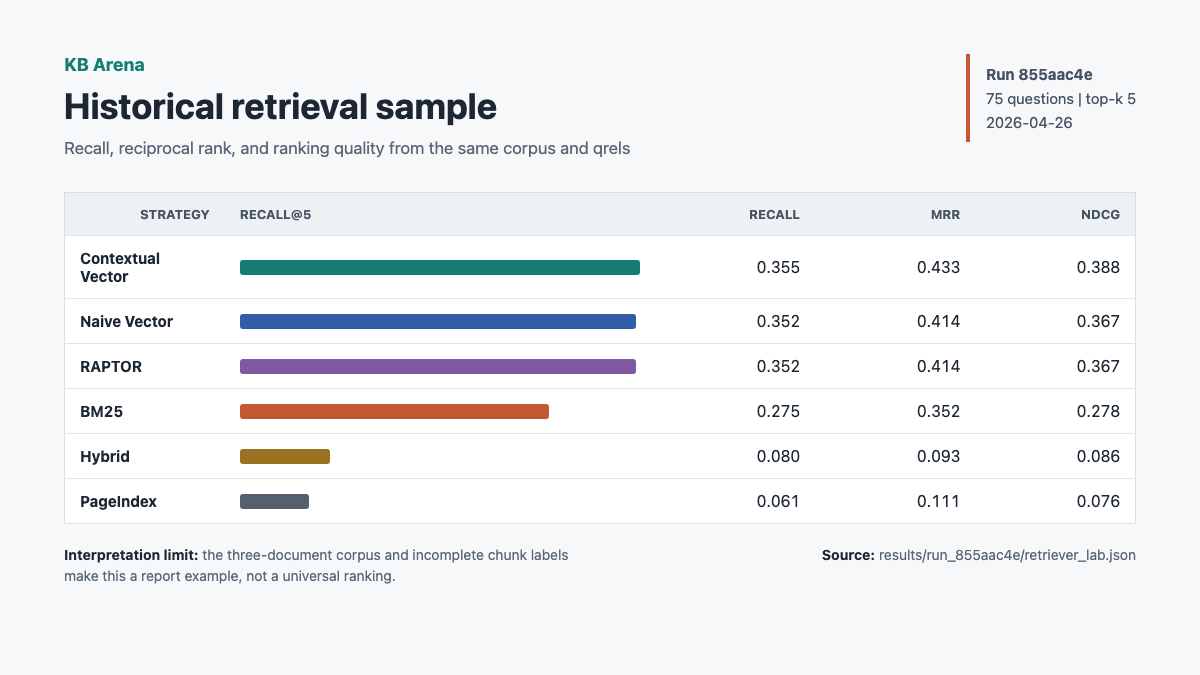

| Strategy | Recall@5 | MRR | NDCG@5 |
|---|---|---|---|
| Contextual Vector | 0.355 | 0.433 | 0.388 |
| Naive Vector | 0.352 | 0.414 | 0.367 |
| RAPTOR | 0.352 | 0.414 | 0.367 |
| BM25 | 0.275 | 0.352 | 0.278 |
| Hybrid | 0.080 | 0.093 | 0.086 |
| PageIndex | 0.061 | 0.111 | 0.076 |
Source: tracked report and run artifact.
These numbers show the report format and calculation path. The corpus is too small, and its chunk labels are too incomplete, to support a general winner claim. Q&A Pairs and Knowledge Graph from that run have zero chunk-level scores because their retrieved identifiers did not map to the available labels. Those zeroes reflect gaps in the current evaluation, not evidence that the methods cannot retrieve useful context.
The repository includes a deterministic NIST SP 800-171 Revision 3 corpus built from the official publication. It has 130 control documents and 80 questions across direct, paraphrased, scenario, boundary, and multi-control categories. Each question maps to source control sections, with 48 development, 12 validation, and 20 holdout items.
The question set is not a human-approved benchmark but a machine-generated draft. Do not publish a strategy winner from it until a qualified reviewer checks the questions, answers, constraints, and holdout isolation. See the corpus notes, source manifest, and evaluation method.
Install and start Ollama, then pull both generation and embedding models:
ollama pull llama3.1:8b
ollama pull nomic-embed-text
export KB_ARENA_LLM_PROVIDER=ollama

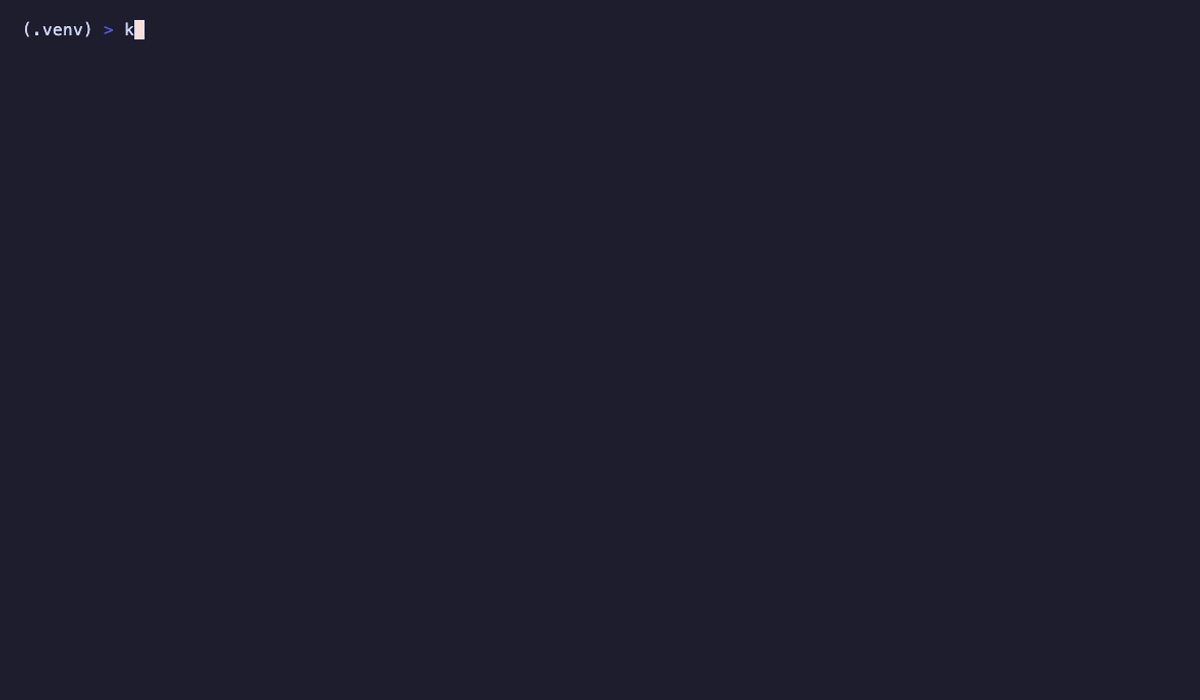

export KB_ARENA_EMBEDDING_PROVIDER=ollamaCreate a corpus, place files in raw/, and run the pipeline:
pip install 'kb-arena[all-formats]'
kb-arena init-corpus my-docs
cp -R /path/to/docs/. datasets/my-docs/raw/
kb-arena run --corpus my-docs --skip-graph
run ingests a populated raw/ directory automatically. Remove --skip-graph after starting
Neo4j when you want graph and hybrid comparisons.
The generation and embedding providers are independent:
export KB_ARENA_LLM_PROVIDER=anthropic
export KB_ARENA_ANTHROPIC_API_KEY=...
export KB_ARENA_EMBEDDING_PROVIDER=openai
export KB_ARENA_OPENAI_API_KEY=...
kb-arena run --corpus my-docsSupported embedding providers are OpenAI, Voyage, Cohere, Gemini, local BGE, and Ollama. See the getting-started guide for formats, Neo4j setup, checkpoints, and provider configuration.
Use the retrieval-only path when you need to isolate the index and ranking behavior:
kb-arena label-chunks --corpus my-docs
kb-arena retriever-lab --corpus my-docs --top-k 5It reports Recall@k, Precision@k, Hit@k, MRR, NDCG@k, MAP, R-Precision, bpref, bootstrap confidence intervals, and per-tier breakdowns.
Use the full benchmark for generated-answer scoring, source attribution, latency, cost, and reliability:
kb-arena benchmark --corpus my-docs --top-k 5
kb-arena report --corpus my-docs --format markdownUse optimization after you define a development split. Keep a separate holdout for the published comparison:
kb-arena optimize \
--corpus my-docs \
--split development \
--strategies bm25,naive_vector,contextual_vector,raptor \
--top-ks 3,5,10 \
--metric ndcgAfter you choose the configuration, run the public comparison with
kb-arena benchmark --split holdout.
Optimization remains retrieval-only. QnA Pairs and RAPTOR reuse their prebuilt indexes and sweep top-k only. They do not regenerate pairs or summaries during a search.
Read the evaluation method before interpreting small score differences or synthetic question sets.
The catalog includes the strategies below. The default all benchmark excludes Rerank Vector and
SQR. Rerank Vector needs the dependency for its selected backend, and SQR needs the optional
quantum dependency group. The API reports loaded and unavailable strategies at GET /strategies.
| Strategy | Architecture | Default | Notes |
|---|---|---|---|
| Naive Vector | Dense | Yes | Chunk, embed, cosine retrieval |
| Contextual Vector | Dense | Yes | Adds parent context before embedding |
| Q&A Pairs | Generated index | Yes | Creates likely questions at index time |
| Knowledge Graph | Graph | Yes | Retrieves through Neo4j entities and relationships |
| Hybrid | Hybrid | Yes | Routes and fuses vector and graph results with RRF |
| RAPTOR | Hierarchical | Yes | Retrieves chunks and recursive summaries |
| PageIndex | Hierarchical | Yes | Uses document structure and LLM tree traversal |
| BM25 | Lexical | Yes | Keyless keyword baseline |
| Rerank Vector | Reranked dense | No | The BGE backend uses kb-arena[rerank]. |
| QISS | Experimental | Yes | Pure NumPy fidelity reranker over dense candidates |
| SQR | Experimental | No | Qiskit Aer SWAP-test reranker, install kb-arena[quantum] |
See strategy details and the plugin guide.
- Auto-generated questions help expand coverage, but production queries and human review give stronger deployment evidence.
- An LLM judge can introduce model bias. Use a different judge family, keep the prompts and model versions, and inspect disagreements.
- Architecture-native indexes do not always return the same chunk identifiers. Validate qrel mappings before comparing retrieval metrics.
- Cost and latency depend on provider, model, cache state, hardware, concurrency, and region.
- Tune on development data. Publish results only from a sealed holdout.
- Quantum strategies are experiments. The AWS sample does not show a Recall@5 gain over the dense baseline.
The method guide defines the evidence that belongs with a public result.
- Getting started
- Evaluation method
- Retriever Lab
- Strategy catalog
- Changelog
- Security policy
- Contributing
git clone https://github.com/xmpuspus/kb-arena
cd kb-arena
pip install -e '.[dev]'
ruff check .
ruff format --check .
pytest tests/ -q --ignore=tests/liveThe frontend uses Next.js 16 and needs Node.js 20.9 or later:
cd web
npm ci
npm run lint
npm run buildThe canonical citation metadata is in CITATION.cff. GitHub can export it through the repository's Cite this repository action. The archived software record is available through the DOI badge above.
